SKU: LTR-9909

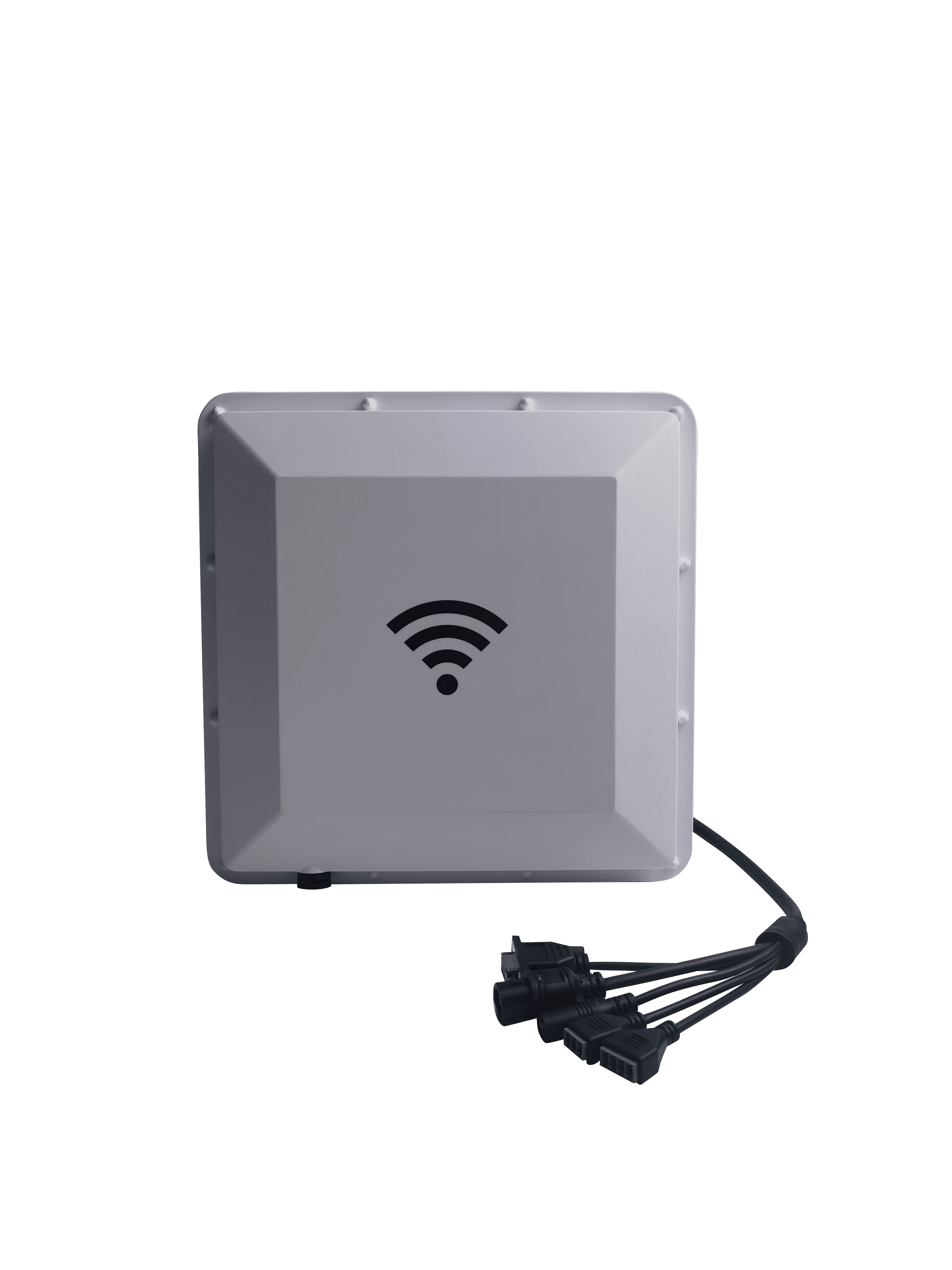

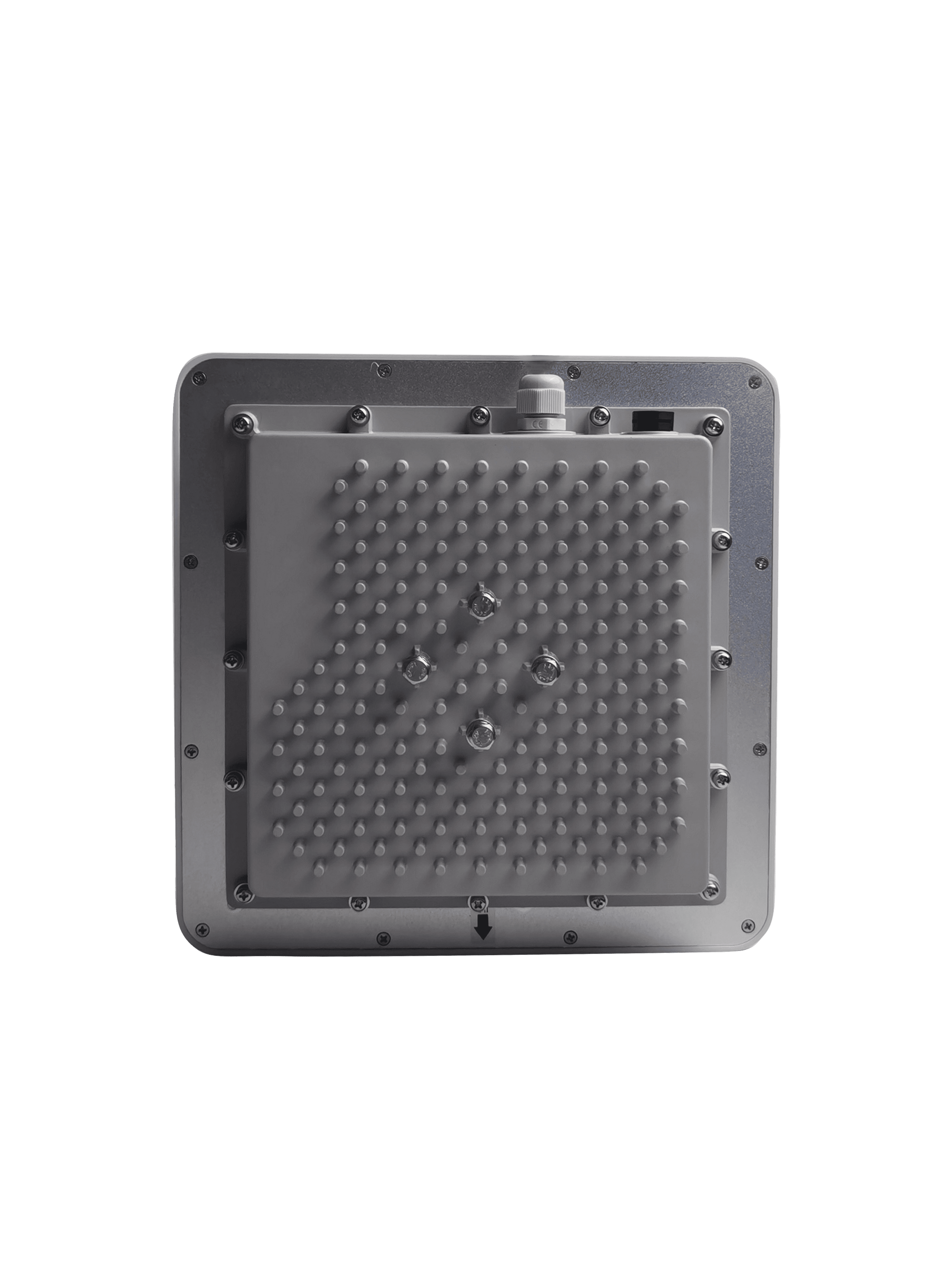

LTR-9909 UHF 9 dBi Integrated Reader
Integrated UHF reader with a 9 dBi high-gain antenna for elevated storage and wider lanes.
Ports9 dBi
PowerUp to 30 dBm
Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
Warehouse Logistics
Product Overview
Model positioning, managed objects, and project use cases.
The LTR-9909 provides a 9 dBi integrated antenna and a typical read range of 4–6 meters. It is designed for taller rack structures, wider warehouse lanes, and deployments that need stronger forward gain in a single-box reader.
Product typeUHF Integrated Readers
InterfacesRJ45 / RS-485
ApplicationsWarehouse Logistics
Work modesFixed
Technical Specifications
Precision Engineering Data Sheet
RF Performance
Operating Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
ProtocolEPC Gen2 / ISO 18000-63
Antenna Gain9 dBi
Read Range4-6 m (Typical)
Transmit PowerUp to 30 dBm
Interfaces
Communication InterfaceRS-485 / RJ45 (TCP/IP)
Power
Power SupplyDC 12V / PoE
Environment
IP RatingIP65
Operating Temperature-20°C ~ +70°C
Interface & Connectivity Diagram
RJ45 / RS-485 · Fixed · Warehouse Logistics
Industrial InterfaceRS-485 / RJ45 (TCP/IP)
Control & Event LogicEPC Gen2 / ISO 18000-63
Deployment EnvelopeIP65
