SKU: LTR-9908

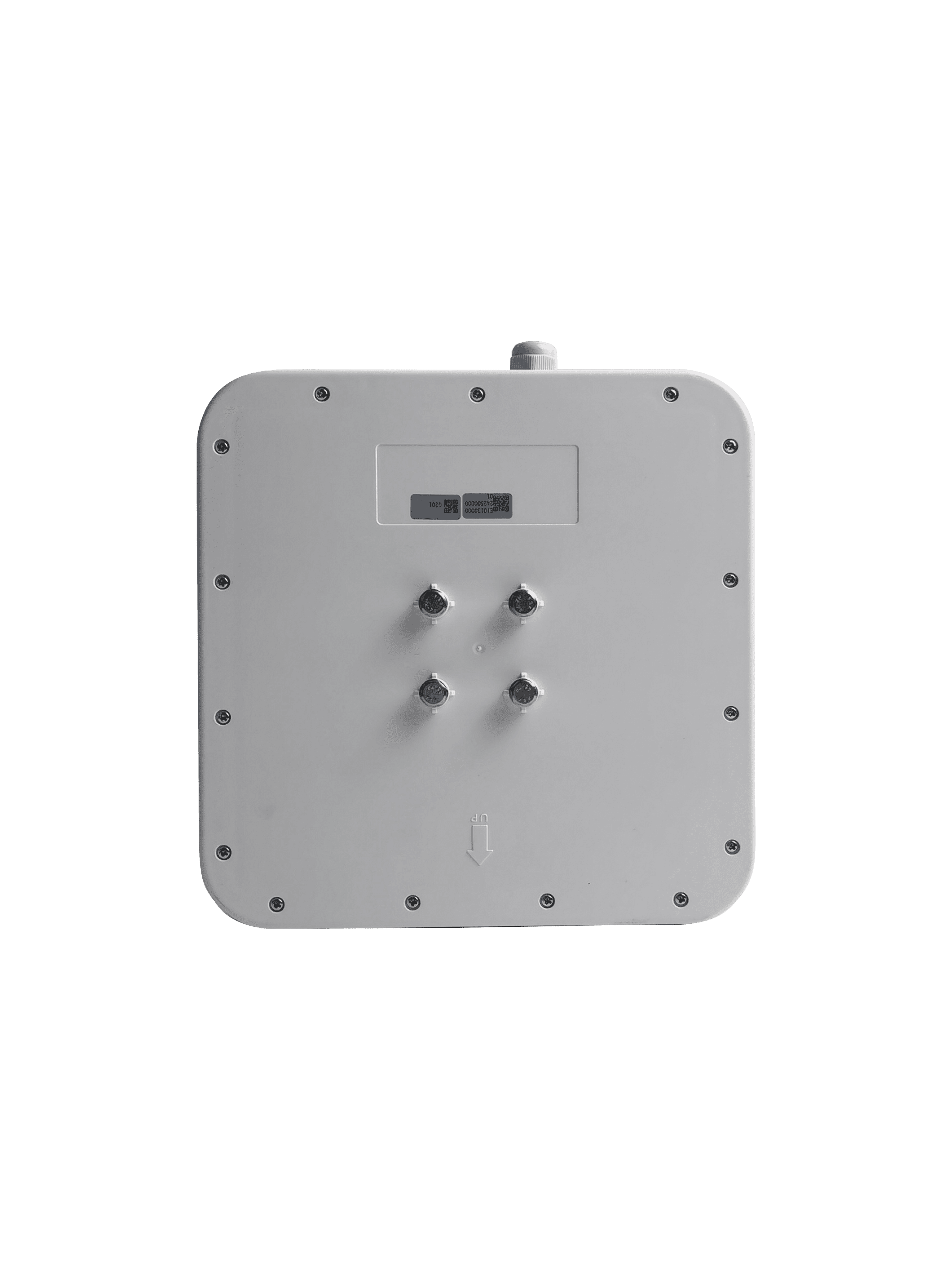

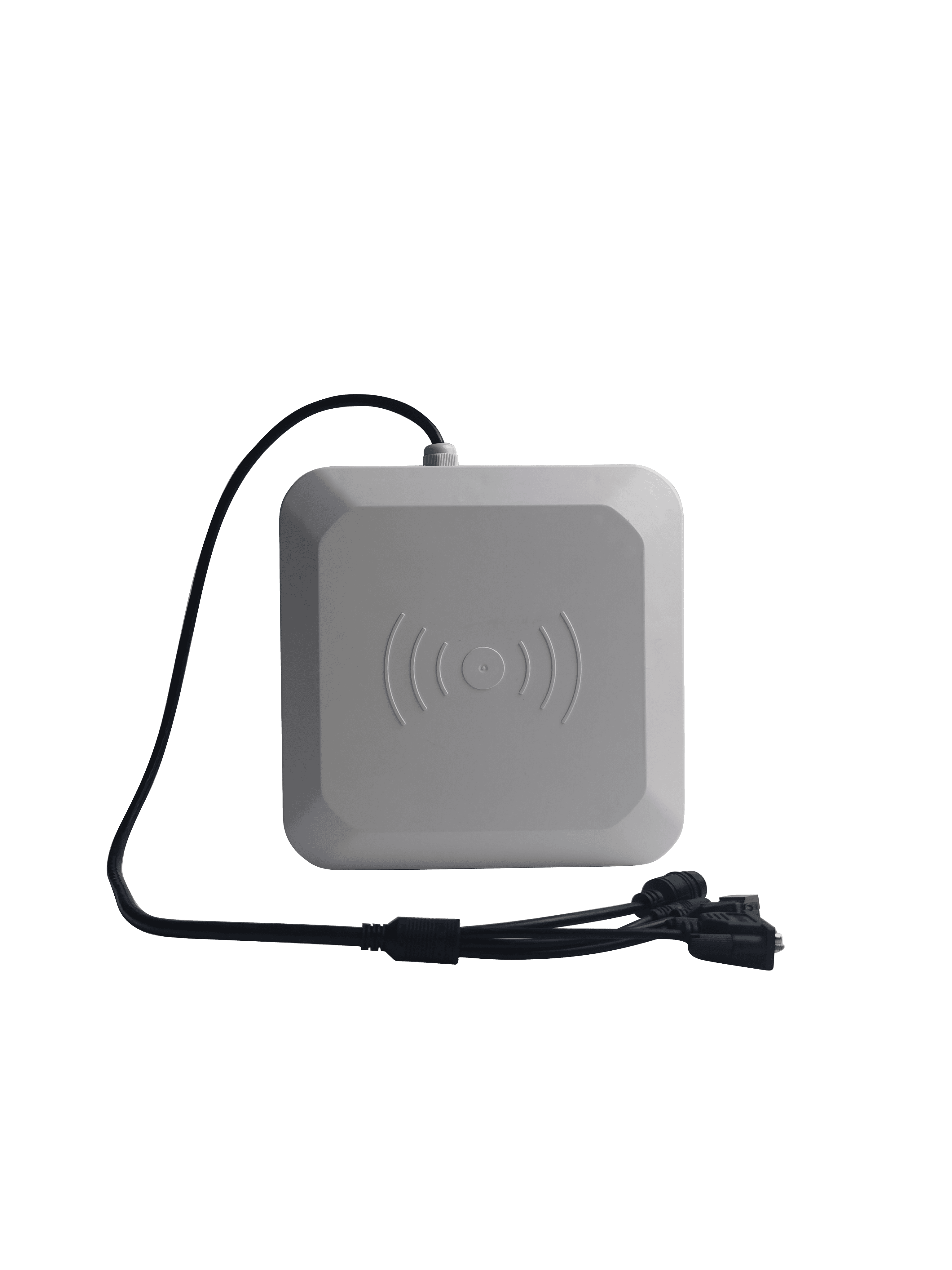

LTR-9908 UHF 8 dBi Integrated Reader
Integrated UHF reader with a built-in 8 dBi antenna for medium-range warehouse lanes and shelf zones.
Ports8 dBi
PowerUp to 30 dBm
Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
Warehouse Logistics
Product Overview
Model positioning, managed objects, and project use cases.
The LTR-9908 combines the reader and antenna in one compact enclosure with 8 dBi gain and a typical read range of 2–5 meters. It is suited to warehouse passages, shelf inspection, and other medium-range industrial RFID applications.
Product typeUHF Integrated Readers
InterfacesRJ45 / RS-485
ApplicationsWarehouse Logistics
Work modesFixed
Technical Specifications
Precision Engineering Data Sheet
RF Performance
Operating Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
ProtocolEPC Gen2 / ISO 18000-63
Antenna Gain8 dBi
Read Range2-5 m (Typical)
Transmit PowerUp to 30 dBm
Interfaces
Communication InterfaceRS-485 / RJ45 (TCP/IP)
Power
Power SupplyDC 12V / PoE
Environment
IP RatingIP65
Operating Temperature-20°C ~ +70°C
Interface & Connectivity Diagram
RJ45 / RS-485 · Fixed · Warehouse Logistics
Industrial InterfaceRS-485 / RJ45 (TCP/IP)
Control & Event LogicEPC Gen2 / ISO 18000-63
Deployment EnvelopeIP65
