SKU: LTR-9716

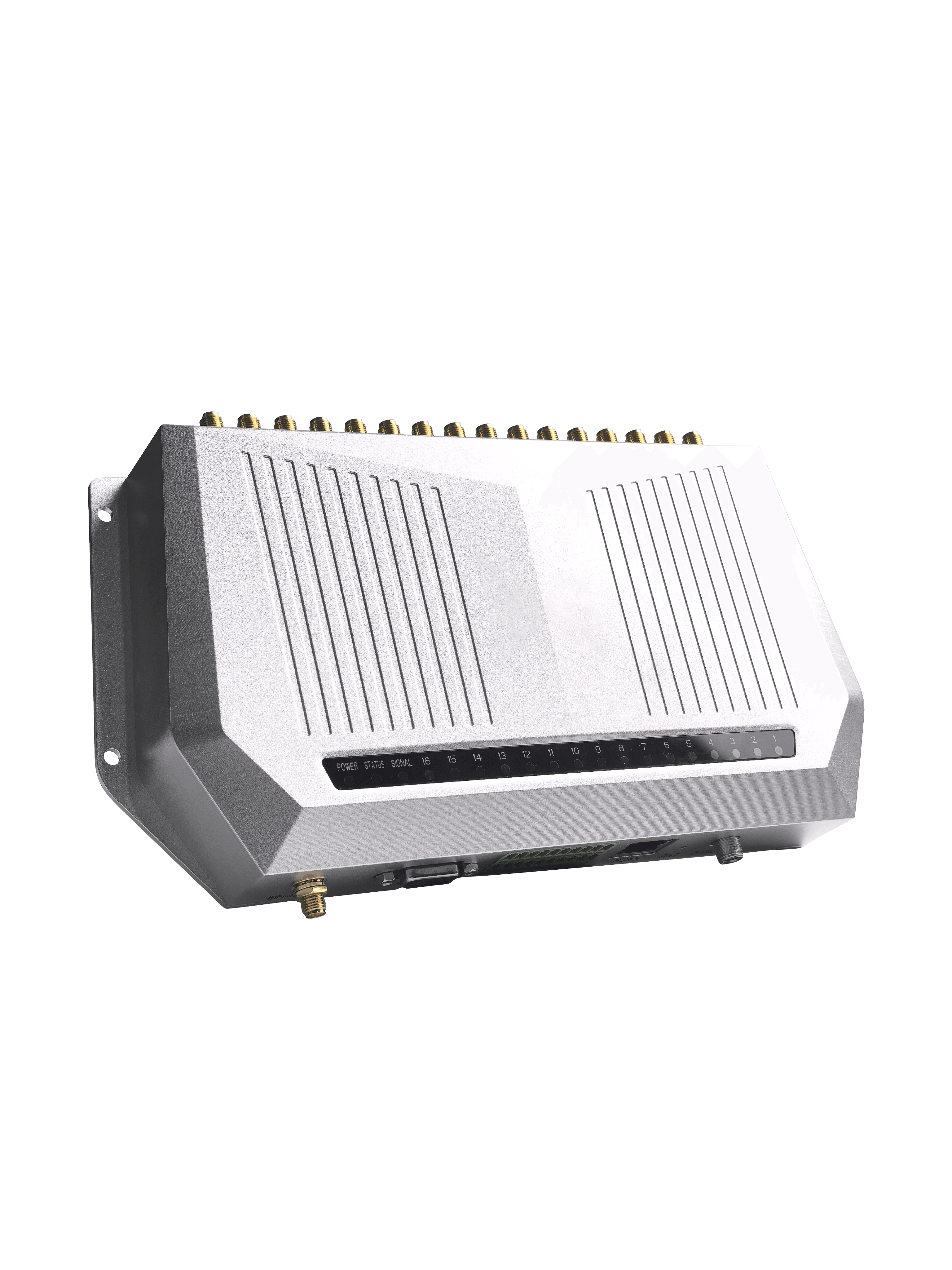

LTR-9716 UHF Sixteen-Port Split-Type Reader (Standard)
Sixteen-port split-type UHF reader for large logistics hubs and very wide RFID coverage.
Ports16
PowerUp to 33 dBm per port
Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
Warehouse Logistics
Product Overview
Model positioning, managed objects, and project use cases.
The LTR-9716 supports up to sixteen external antennas from a single industrial controller. It simplifies system topology in very large warehouses, ports, and cargo terminals that need broad RFID coverage from fewer control points.
Product typeUHF Fixed Readers
InterfacesRJ45 / RS-485
ApplicationsWarehouse Logistics
Work modesFixed
Technical Specifications
Precision Engineering Data Sheet
RF Performance
Operating Frequency902-928 MHz / 865-868 MHz / 920-925 MHz
ProtocolEPC Gen2 / ISO 18000-63
Antenna Ports16
Transmit PowerUp to 33 dBm per port
Interfaces
Communication InterfaceRJ45 (TCP/IP) / RS-485
Power
Power SupplyDC 24V
Environment
Operating Temperature-20°C ~ +60°C
Interface & Connectivity Diagram
RJ45 / RS-485 · Fixed · Warehouse Logistics
Industrial InterfaceRJ45 (TCP/IP) / RS-485
Control & Event LogicEPC Gen2 / ISO 18000-63
Deployment Envelope-20°C ~ +60°C
